Overview

Use the links on the left to choose your specific M3 Server Model. Not all disk drives and memory modules fit in all M3 server models.

If you need additional configuration, ordering, or integration assistance, please call 888-878-4167 or submit a Quotation with any additional questions.

IBM M3 Disk Drive Options from Storage Networks

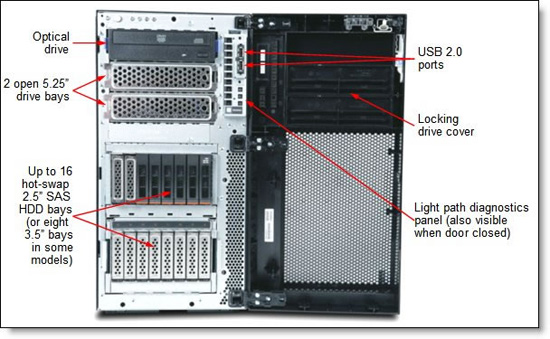

IBM x3400 M3 HDDs from iStorage Networks

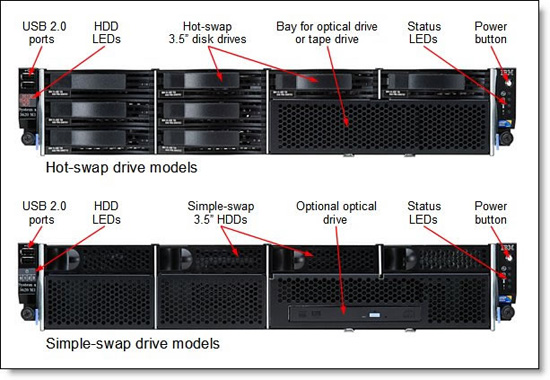

IBM x3620 M3 HDDs from iStorage Networks

Notes:
x3200 M3 Servers - A mix of SAS and SATA drives is not supported by x3200 M3 server.

Attention:
A four-digit feature code is used to specify a component that is configurable in the IBM configurators, the eBusiness Configurator (eConfig) and the IBM Web-based Hardware Configurator, used in US and Canada. Options that do not have feature codes cannot be integrated by IBM into a system using these IBM configurators. To purchase options separately, refer to the option part number.

Price and Availability:
In stock drives can be chosen by Capacity/Interface/Form-Factor or by the IBM Option Part Number using the left sidebar. In stock IBM Replacement Part CRU / FRU's and Feature Codes can be found in the right sidebar. In stock drives can ship the same day ordered. IBM disk drives not currently shown in stock can be shipped within a three to five (3-5) days.

External disk storage systems
The following table lists the external storage systems that are supported by the xServer M3 Series. These servers may support other IBM disk systems and third party syatems that are not listed in this table. Refer to IBM System Storage Interoperability Center for further information, or contact us for IBM Disk Storage System configuration and ordering assistance.

Part Number Description
1746A2D IBM System Storage DS3512 Express Dual Controller Storage System
1746A2S IBM System Storage DS3512 Express Single Controller Storage System
1746A4D IBM System Storage DS3524 Express Dual Controller Storage System
1746A4S IBM System Storage DS3524 Express Single Controller Storage System
181494H IBM System Storage DS3950 Model 94
181498H IBM System Storage DS3950 Model 98
181492H IBM System Storage EXP395 Expansion Unit
1746A2E IBM System Storage EXP3512 Express Storage™ Expansion Unit
1746A4E IBM System Storage EXP3524 Express Storage Expansion Unit



If you need additional configuration, ordering assistance, or integration assistance, please call 888-878-4167 or submit a Quotation with any additional questions.





IBM xSeries Support
IBM M3 series servers are no longer orderable through IBM. Contact us if you need upgrades or custom built servers from our inventory of spare parts.
