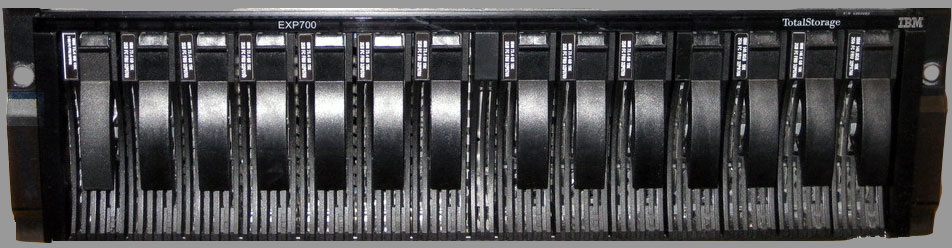

exp710

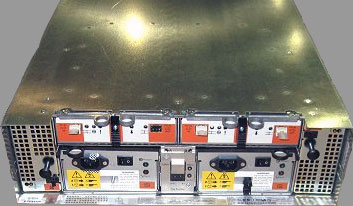

exp710_rear


EXP700 Expansion Array

Disk Drives
Power Supplies
Link Control Cards
SFPs

Options
EX700 Disk Drives
rightarrow 300GB 10K FC

rightarrow 146GB 15K FC

rightarrow 146GB 10K FC

Drive Multi-Packs
rightarrow 4x 300GB 10K FC

rightarrow 4x 146GB 15K FC

rightarrow 4x 146GB 10K FC

Expansion Shelves

get_RFQ





Overview

The IBM EXP700 expansion enclosure allows you to add up to (14) 3.5" disk modules to your DS4300 (FAStT600), DS4400, and DS4500 storage servers.

The EXP700 operates at 2Gbps with the above controllers. It will auto-negotiate to 1Gbps mode when placed in a loop consisting of EXP500 enclosures and legacy FAStT200 and FAStT500 storage servers.

Server RAID Controllers EXP700 Enclosures Max Number of Disks
FAStT500 2 8 112
DS4400 2 8 112
FAStT500 1 4 56
FAStT200 2 4 66
FAStT200 1 2 38
Values above are attained by using Storage Manager 8.0 or later, using all internal storage server drive bays, and replacing all 10-Bay EXP500 arrays with 14 Bay EXP700 arrays.
