IBM and Lenovo Storwize V3700 V2 IBM-A040 HDD
IBM-E050 FlashSystem 5100
& Storwize V5000 Gen2


Machine Type - Models
2077 / 2078-12F -24F -92F
2077 / 2078-12G -24G -92G
2077 / 2078-424 -4H4 -AF4,
-124, -224, -324, -112, -212, -312
IBM 5100 Drives
IBM TotalStorage
3.5" 2077 / 2078-xxx Drives
rightarrow 12TB 7.2K 12Gb NL SAS 4Kn
rightarrow 10TB 7.2K 12Gb NL SAS 4Kn
rightarrow 8TB 7.2K 12Gb NL SAS 4Kn
rightarrow 6TB 7.2K 12Gb NL SAS 4Kn
rightarrow 4TB 7.2K 12Gb NL SAS 4Kn
rightarrow 2.4TB 10K 12Gb SAS
rightarrow 1.8TB 10K 12Gb SAS
rightarrow 1.2TB 10K 12Gb SAS
rightarrow 900GB 10K 12Gb SAS
rightarrow 900GB 15K 12Gb SAS
rightarrow 600GB 15K 12Gb SAS
rightarrow 300GB 15K 12Gb SAS

2.5" 2077 / 2078-xxx Drives
rightarrow 2TB 7.2K NL SAS 4Kn
rightarrow 2.4TB 10K 12Gb SAS
rightarrow 1.8TB 10K 12Gb SAS
rightarrow 1.2TB 10K 12Gb SAS
rightarrow 900GB 10K 12Gb SAS
rightarrow 900GB 15K 12Gb SAS
rightarrow 600GB 15K 12Gb SAS
rightarrow 300GB 15K 12Gb SAS

3.5" 2077 / 2078-92F/G Drives
rightarrow 12TB 7.2K 12Gb NL SAS 4Kn
rightarrow 10TB 7.2K 12Gb NL SAS 4Kn
rightarrow 8TB 7.2K 12Gb NL SAS 4Kn
rightarrow 6TB 7.2K 12Gb NL SAS 4Kn
rightarrow 1.8TB 10K 12Gb SAS
rightarrow 1.2TB 10K 12Gb SAS
rightarrow 600GB 15K 12Gb SAS

IBM Feature & P/N
IBM TotalStorage
3.5" 2077/8 Feature & P/N
rightarrow AC3D & 01YM206
rightarrow AC3C & 01LJ427
rightarrow AC3B & 01EJ075
rightarrow AC3A & 01LK198
rightarrow AC39 & 01EJ065
rightarrow AC2A & 01YM214
rightarrow AC29
rightarrow AC28
rightarrow AC27
rightarrow AC18
rightarrow AC17
rightarrow AC16

2.5" 2077/8 Feature & P/N
rightarrow AC76 & 01EJ032
rightarrow AC6B & 01YM198
rightarrow AC6A & 01EJ027
rightarrow AC69 & 01EJ022
rightarrow AC68
rightarrow AC59 & 01LJ854
rightarrow AC58 & 01EJ012
rightarrow AC57 & 01EJ005

3.5" 2077/8-92F/G Feature & P/N
rightarrow ACPA
rightarrow ACP9
rightarrow ACP8
rightarrow ACP7
rightarrow ACP4
rightarrow ACP3
rightarrow ACP0


Overview

The IBM Storwize V5100 and V5000 Gen2 Models have been renamed to IBM FlashSystem 5100. The Storwize V5100F Hybrid has been renamed to IBM FlashSystem 5100H. All models have the same functional equivalency and support the same drives listed here. Please note that, effective January 14, 2023, IBM has withdrawn these products from production and marketing and are no longer available as new. See the Hardware Withdrawal Notice for more information. The IBM drives listed here are IBM Certified drives with a 1 Year Warranty.

The IBM FlashSystem 5100 Machine Type Controllers are 2077 / 2078-424 -4H4 and the Enclosure Machine Types are 2077 / 20768-12F -24F -92F -12G -24G, and -92G. The primary difference between 2077-xxx and 2078-xxx machine types is the warranty length. 2077-xxx had a 1 Year Warranty and the 2078-xxx had an intial three Year Warranty. All IBM drives listed here have a standard 1 Year Advance Exchange Warranty with an optional three Year Warranty.

12x 3.5-inch Expansion Enclosures: 2077/2078-12F and 2077/2078-12GIBM Storwize 2072 and 2071 3.5

24x2.5-inch Expansion Enclosures: 2077/2078-24F and 2077/2078-24GIBM Storwize 2072 and 2071 2.5

92x3.5-inch Enclosure: 2077/2078-92F and 2077/2078-92G

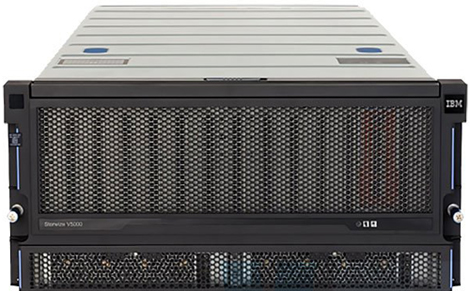

IBM 2078-92F



Price and Availability:
In stock drives can be ordered by Capacity/Interface/Form-Factor or by the IBM 2077 / 2078- xxxx Feature Code or Part Number using the left sidebar. The corresponding IBM replacement Part CRUs / FRU's can be found and ordered in the right sidebar. In stock drives ship within twenty four (24) hours when ordered online. IBM FlashSystem 5100 drives, not currently in stock, can be ordered and delivered within four business days.

Please note that, effective January 14, 2023, IBM has withdrawn these products from production and marketing. See the Hardware Withdrawal Notice for more information. The IBM drives listed here are IBM Certified refurbished drives with a 1 Year Warranty.

Contact us if you need more information or integration assistance for your IBM Storwize FlashSystem Controllers or Expansion units.

Important IBM FlashSystem 5100 (Storwize V5000 Gen2) Notes and Restrictions:

- All drives are dual-port and hot-swappable. All drives can be intermixed within the enclosure they are designed for. LFF and SFF expansion enclosures can be intermixed behind the SFF control enclosure.

- FlashSystem 5100 Systems can be added into existing Storwize V5000 clustered systems that include previous generation Storwize V5000 Gen1 systems. All systems within a cluster must be using the same version of Storwize V5000 software. Minimum revision is 8.2.1. Not supported with revision 8.5.0.x or higher.

- Disk Drives and SSDs in the IBM FlashSystem 5100 (Storwize V50x0 Gen2) must have the appropiate Vendor ID (e.g. IBM-E050) and the approriate Part Number (FRU) displayed in the Vital Product Data (VPD) Drive Properties details in order to be supported. All of the IBM drives listed on this page are IBM Certified drives that meet these requirements for full support on the IBM FlashSystm 5100 Storwise models.

Order Online, Call 888-878-4167 or submit a "Get Quote" for quantity discounts and availibily.

Documents
IBM EXP810
IBM FlashSystem 5100
Hardware Withdrawal Notice
V5100 Data Sheet

IBM 5100 FRU / CRU
IBM TotalStorage
3.5" FRU Part Number
rightarrow 01YM211
rightarrow 01EJ995
rightarrow 01AC606
rightarrow 01AC605
rightarrow 01AC604
rightarrow 01YM219
rightarrow 01AC609
rightarrow 01AC608
rightarrow 01AC607
rightarrow 01LJ851
rightarrow 01EJ189
rightarrow 01EJ188

2.5" FRU Part Number
rightarrow 01AC599
rightarrow 01YM203
rightarrow 01AC598 - 01NN116
rightarrow 01AC597
rightarrow 01AC596
rightarrow 01LJ859
rightarrow 01AC595
rightarrow 01AC594

3.5" 2077 / 2078-92F/G FRU
rightarrow 01YM235
rightarrow 01LJ042
rightarrow 01LJ041
rightarrow 01LJ040
rightarrow 01LJ039
rightarrow 01LJ038
rightarrow 01LJ037

2.5" SSD & Flash FRU (CALL)

  Call 888-878-4167 or "Get Quote" now for quantity discounts.
