TotalStorage DS3500
- Models DS3524 & DS3512
- EXP3524 & EXP3512 Units
- Disk Drives
Overview
The IBM System Storage DS3500 series storage subsystems support up to two redundant RAID controllers in either a 12 or 24 drive configuration. The models for the storage servers are DS3512 and DS3524. There are also two models of drive expansion chassis, a 12 LFF and a 24 SFF drive version, that can be attached to either of the storage subsystems. The models for these are EXP3512 and EXP3524.
An important difference between the DS3512 and the DS3524 product models and their equivalent expansion models are the hard disks that are supported with them. The difference starts with the physical drive size and extends to their speeds and storage capacities. The DS3512 and EXP3512 support 12 drives in the 3.5 inch format; the DS3524 and EXP3524 supports 24 drives in the 2.5 inch format. The disk drives are installed at the front, as shown in the below figures.
IBM Storage Manager v10.86 or greater, inconjuntion with Controller FW v7.86, is required to enable the HDD capable T10 PI funtionality.

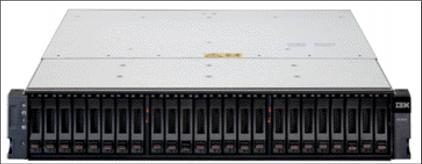

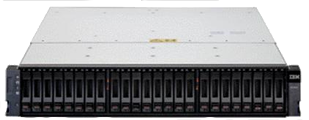

DS3524 and EXP3524 (24x 2.5″ Drives)

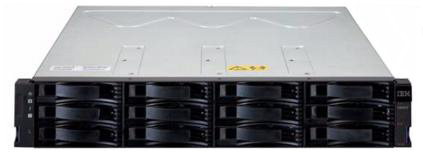

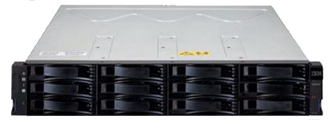

DS3512 and EXP3512
(12x 3.5″ Drives)
| Drives Supported | DS3512 / EXP3512 | DS3524 / EXP3524 |
|---|---|---|
| SAS 15KRPM | 300 GB, 450 GB, 600 GB | 73 GB, 146 GB, 300 GB |
| SAS 15KRPM SED | 600 GB | None |
| SAS 10KRPM | None | 300 GB, 600 GB, 900 GB |
| SAS 10KRPM SED | None | 300 GB |
| Nearline SAS 7.5KRPM | 1 TB, 2 TB, 3TB, 4TB | 500 GB, 1 TB |
| Maximum drives | 12/96 | 24/96 |
Note: In the DS3500 family, you can add a mix of EXP3512 or EXP3524 expansion units to attain a maximum capacity of 190 TB per subsystem. New drive capacities are qualified during the life cycle of these products and may require a minimum controller revision.
Price and Availability:
In stock drives can be chosen by Capacity/Interface/Form-Factor or by the IBM Option Number using the left sidebar. The corresponding
IBM Replacement Part CRUs / FRU’s and Feature Codes can be found in the right sidebar. In stock drives ship the same day ordered. IBM disk drives not currently in stock can be ordered and delivered to you within three to five (3-5) days.
Contact us if you need more information or integration assistance for your IBM DS3500 Series of products or EXPansion units.
Call 888-878-4167 or submit a “Get Quote”.
